If you are looking for FPV frame that supports DJI HD system with slick and streamline design, then you are in right place.

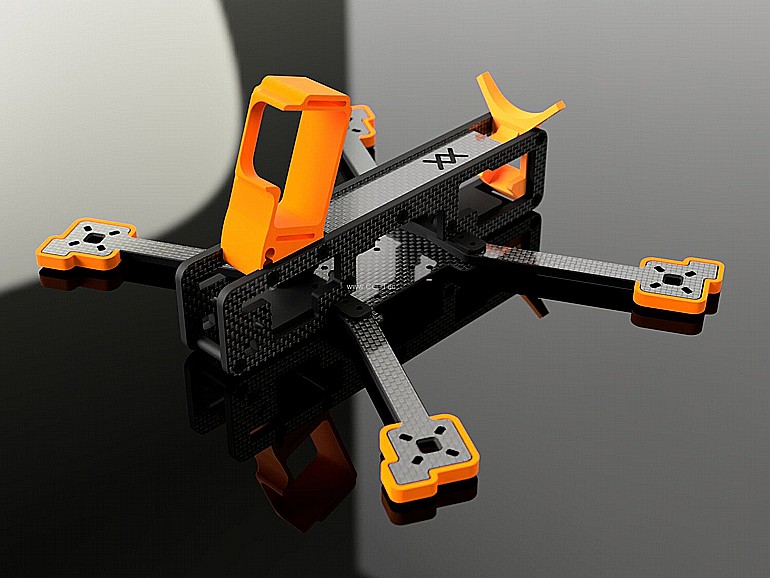

CUBIq FPV Cinema frame is specially designed around DJI’s HD Air Unit and Camera. Completely new design without compromises, nothing been sacrificed to make frame fit HD system.

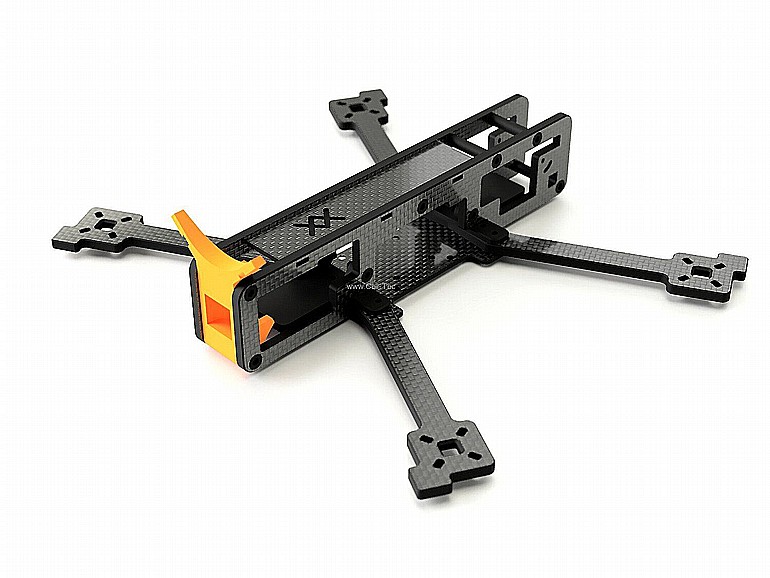

Main body is made from 4.0 mm thick vertical plates. This not only makes frame unique looking, but also increases frame overall rigidity and robustness. Plates are fixed to custom made aluminium brackets.

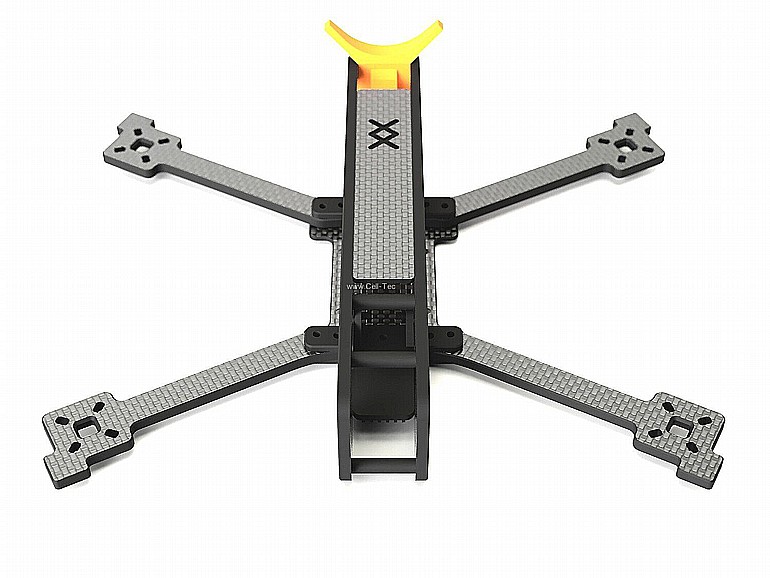

DJI HD Air unit have been placed in the back of the frame to have better weight distribution. Air Unit slightly sticks out from the main body, as well there is enough free space above and below of it. That is made to help with cooling of the Air Unit.

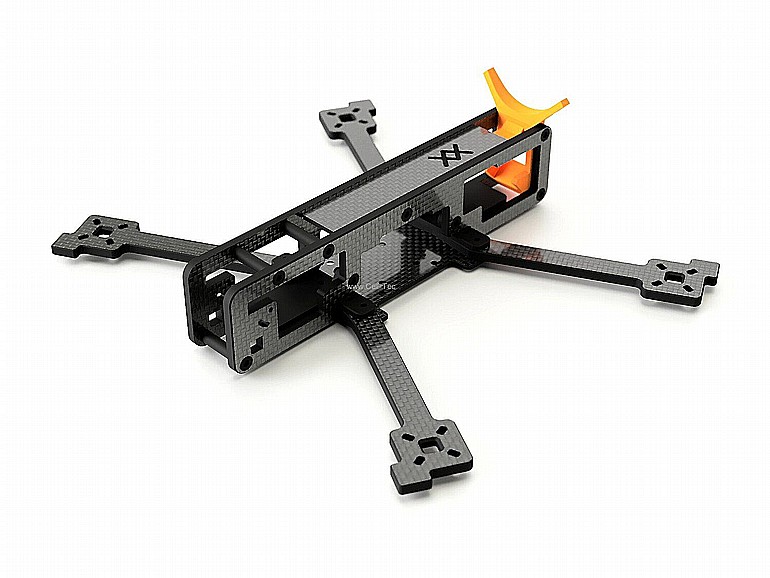

Arms are interlocking and fixed with 5 screws per pair. That solution is keeping them firm together and eliminates any wobbling.
Bottom plate has place for main stack with 20 and 30.5 mm holes layout.
Each frame set is supplied with long Nylon screws, anti-vibration o-rings and Low ESR Rubycon capacitor.
All plates and arms have chamfered edge, they are nice to touch and safe for wires.
Universal adjustable HD cam protection pod can be installed, it is designed for use on most of CrissCrossFPV frames.
Top materials used only, see details below.
Happy flying!!!
Main package:
-
set of CF parts made from T700 3k/UD CF sheets, highly polished and all chamfered
-
set of 7075 T6 Aluminium standoffs
-
set of steel hardware
-
3D printed DJI HD air unit and antenna bracket
-
3D printed GoPro Heroe 6, 7, 8 universal camera bracket (CUBIq 3D version)
-
3D printed arm guards (CUBIq 3D version)
Bonus accessories included:
-
3d printed DJI unit and antenna bracket
-
2x 20x220mm Polyester battery straps with non-slip silicone layer
-
1x low ESR Rubycon 35V 1500uF capacitor
-
1x set of anti-damping o-rings with long nylon screws for stack
Recommended FPV drone building parts:
-
22xx/ 23xx/ 24xx sized motors
-
FuriousFPV Racepit 30.5x30.5 Flight Controller
-
Aikon AK32 4-in-1 55A 6S 30.5x30.5 4in1 ESC
-
DJI HD System
-
TBS Crossfire Nano Rx
