-OVERVIEW-
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
-
New Streaming Multiprocessors
Up to 2x performance and power efficiency
-
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering
-
Third-Gen RT Cores
Up to 2x ray tracing performance
-

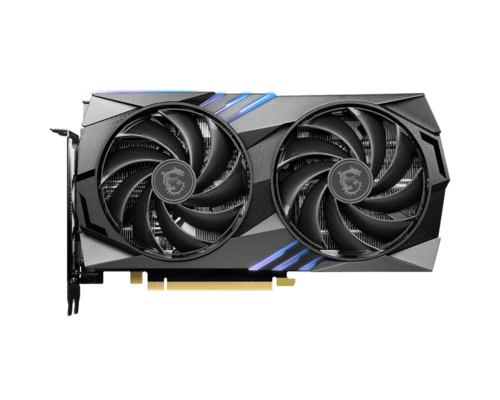

TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
A fan cowl extends a bit beyond the general enclosure to lengthen the wind’s passageway, allowing airflow to stabilize and move smoother through the fans. Bulging notches under the cowl help to reduce recirculation, thus further improving airflow stability and reducing some noise.
-
COPPER BASEPLATE FACING THE HEAT HEAD-ON
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
-
Keeping the core cool. Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.
-
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors for optimizing the balance between cooling and quieter acoustics.
-
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
-
Effective Thermal Padding. An abundance of clay-based thermal pads provide additional heat dissipation for board components.
-
Hardened Defenses. Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
-
WITH DLSS 3
Game, stream, create. The GeForce RTX™ 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
- 2640 MHz / 18 Gbps
- 8GB GDDR6
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
-
TWIN FROZR 9 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
-
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
-
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

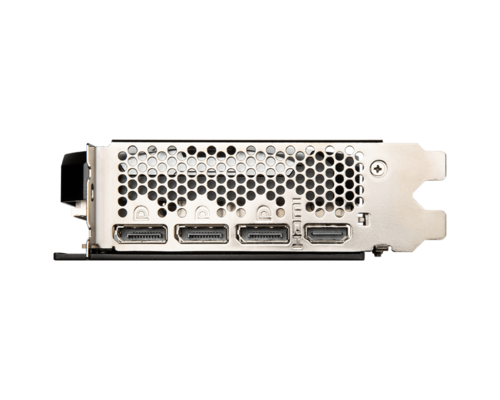

-Connectivity-
3 x DisplayPort (v1.4a)
1 x HDMI™ *
*Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a
-SPECS-
Warranty : 3 Years
Brand : MSI
Series : GAMING X
Model : GeForce RTX™ 4060 Ti GAMING X 8G
GPU : NVIDIA® GeForce RTX™ 4060 Ti
CUDA cores : 4352
Video Memory : 8GB GDDR6
Memory Bus : 128-bit
Core Clock :
- Extreme Performance: 2655 MHz (MSI Center)
- Boost: 2640 MHz
Memory Clock : 18 Gbps
PCI Express : PCI Express® Gen 4 x16 (uses x8)
Recommended Power Supply : 550W
Power Consumption : 160W
Power Input : 8-pin x 1
DirectX : 12 Ultimate
OpenGL : 4.6
Multi Display Capability : Quad Display
HDCP Support : Yes
G-SYNC Technology : Yes
Digital Max. Resolution : 7680 x 4320
Dimensions : 247 x 130 x 42 mm
Weight : 661 g / 1113 g
